Description

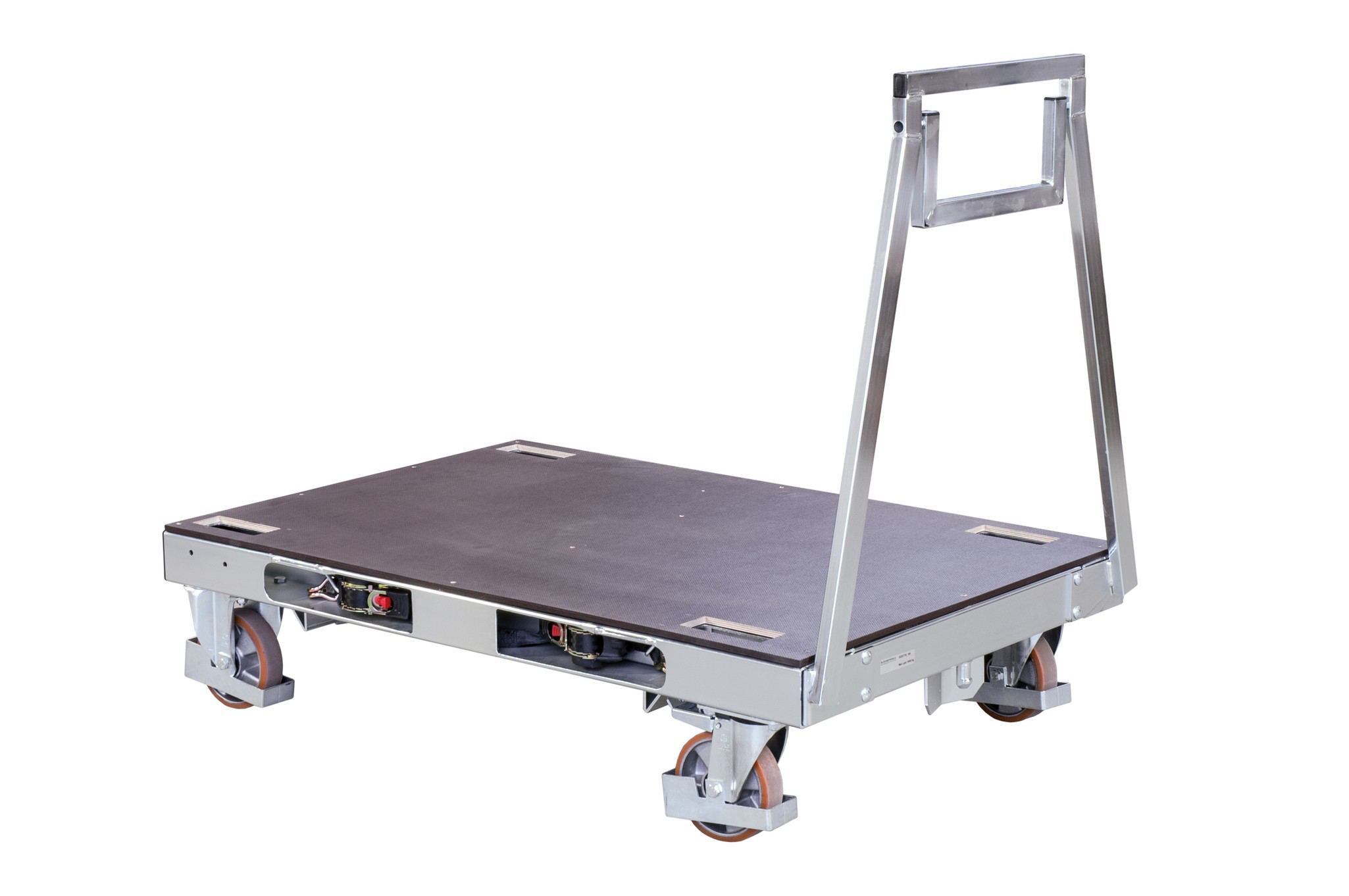

The pallet dolly conforms to the standard Euro pallet size. It is available in the following versions: with an open base and a continuous edge for wooden or plastic pallets, or with a closed wooden base (plywood deck) for smaller containers and the requirements of KLT containers. The rear-mounted bracket features a hanging handle, making it easier to pull the dolly. The drawbar on this dolly is fully retractable, allowing forklifts to pick up the dolly from three sides. Optional tensioning straps for securing the load are factory-installed in the frame.
| Design | Fixed castors with foot protection; swivel castors with brakes; push bar (ergonomic handle); retractable drawbar (pin/hole) |
| Design of the transport surface | Wooden panel (anti-slip surface) |
| color | silver grey |
| Height | 1011 mm |
| Material | Steel |
| Surface | galvanised |
| Roller design | 2 swivel castors/2 fixed castors (PU) |
| Load capacity | 1000 kg |
| Lashing system | 2 straps |
| Width | 800 mm |
| length | 1225 mm |
