Description
This product is not available via the online store.
If you have any questions or are interested, please contact sales@orgatex.de.

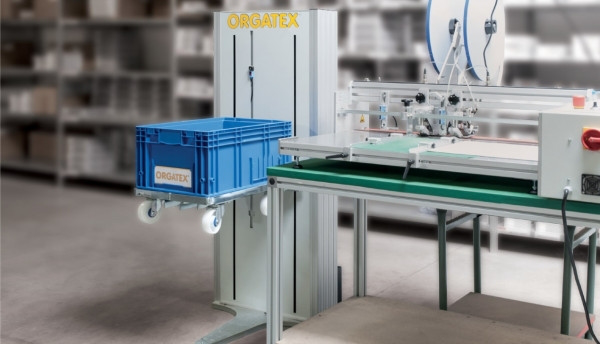

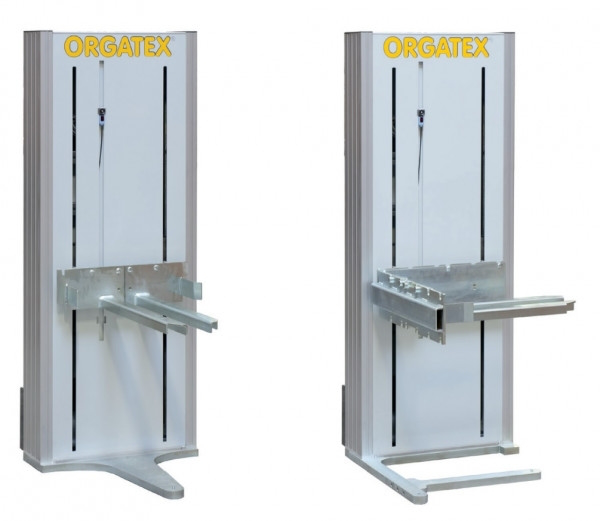

The KLT-Lifter is an electronic lifting device that has been specially developed for the ergonomic positioning of materials at the workplace.
With a stepless lifting height of 95 to 1250 mm, it ensures that materials are always available at the optimum working height. The device is made of robust, galvanized steel and is suitable for use with standard KLTs. With a maximum load capacity of 3000N, the lifter offers sufficient power for industrial use and is operated with an operating voltage of 230V / 50Hz and a protection rating of IP 54.
Thanks to its compact design with dimensions of 1586 x 700 x 290 mm (H x W x D), the KLT lifter can be used flexibly and can also be used in confined work areas.
The lifter reduces physical strain, promotes employee health and thus increases efficiency in production. The modular system also allows it to be adapted to specific requirements.
Accessories and extensions are available on request, as is further information from our customer service team at sales@orgatex.de. The KLT-Lifter is only available via personal consultation and is not available in the online store.
| Width | 600 mm |
| Height | 1516 mm |
| Depth | 290 mm |
| Lifting height | 95 - 1250 mm |
| Dimensions | 1516 x 600 x 290mm (H x W x D) |
| Material | Stahl |
| Surface | pulverbeschichtet |
| color | dunkelgrau |
| Max. load capacity | 2000 N |
| Rated voltage | 230 V |
| Rated current | 16 A |
| Rated frequency | 50 Hz |
| Protection class | IP 54 IEC 529 |
| Shape | Stützwinkel |
